BMW Munich
Smart Building Technology for FIZ FUTURE
Construction began on the Research and Innovation Center (FIZ) as far back as the mid-eighties. The site is the former Alabama Depot in the Munich district of Milbertshofen-Am Hart. Since its inauguration in 1990, FIZ has continued to grow steadily and has always been regarded as the think tank and nerve center of the BMW Group. It is home to experts and developers of all types of vehicle components: from the engine to the electronics to design.
Profile
Order
Construction phase 1
Period
Mid 2018- End 2020
Highlights
Gross floor area
about 150.000 m²
Our functions
Installation of transformers, heavy load stations, and busbars
Electrical installations for test bench and office buildings
Complete lighting systems, incl. lighting control
ICE technology
For ventilation, heating, refrigeration and test bench systems
Hardware planning
Switch cabinet construction
Software development and visualization
Safety engineering
Access control
Time recording
Installation of hazard detection systems (fire alarm, alarm, intrusion detection, and video surveillance systems)
IT/Communication technology
Data infrastructure & WLAN
Networking of control systems (including access control, media technology, ICE technology, blinds, lighting)
Trunked/building radio systems
Interesting figures electrical engineering
57 miles cable & riser routes
870 miles cables & lines
0.8 miles busbars
77 miles aluminum tubes and 2.2 miles parapet trunking
430 distribution boards (various designs)
7,000 lights on 8.6 miles mounting rails as well as 2,500 damp-proof lights
approx. 14,000 individual office lights
1.8 miles light trunking
16 heavy load stations
14 transformers
22,000 junction boxes
ICE technology
60 OPC UA drivers and 137,000 Zenon data points and 4,700 visualization images in the control system
60 substations with 18,600 hardware data points (5,800 comm. DP)
250 control cabinet panels
IT infrastructure
>745 miles of cable
>15,000 data connections
>56 distributor locations with redundant fiber optic connections
Developer
BMW Group
Performed services
- Electrical installations
- Cable trays & routing systems
- Emergency power and UPS systems
- Lightning protection systems
- Potential equalization
- Lighting systems
- Commissioning and support for control systems
- Electrical installation for control systems
- Hardware planning on CAE systems
- Power and control cabinets for HVAC and E-control
- Control systems
- Medium and low voltage systems
- Media and sound systems
Project description

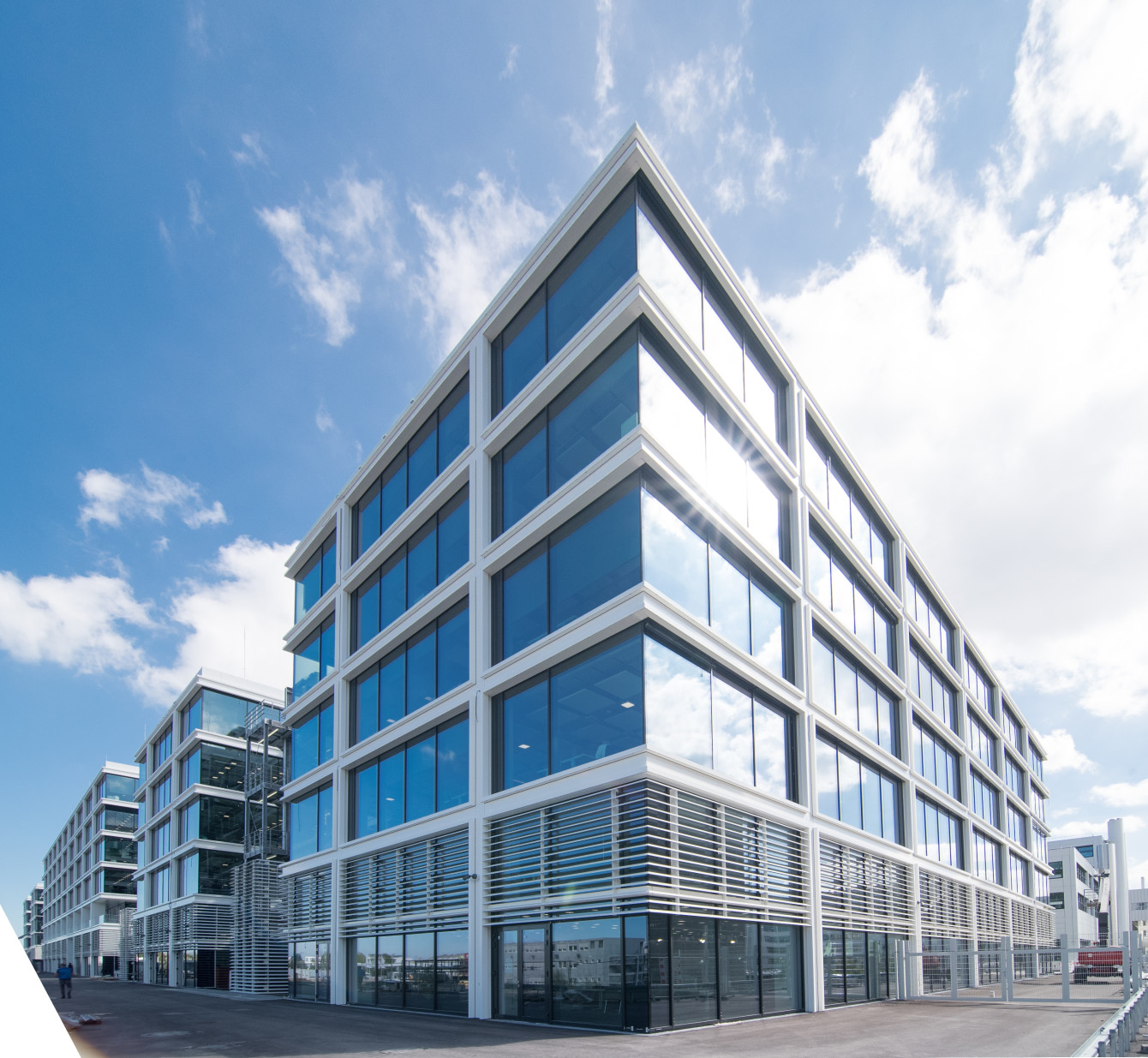

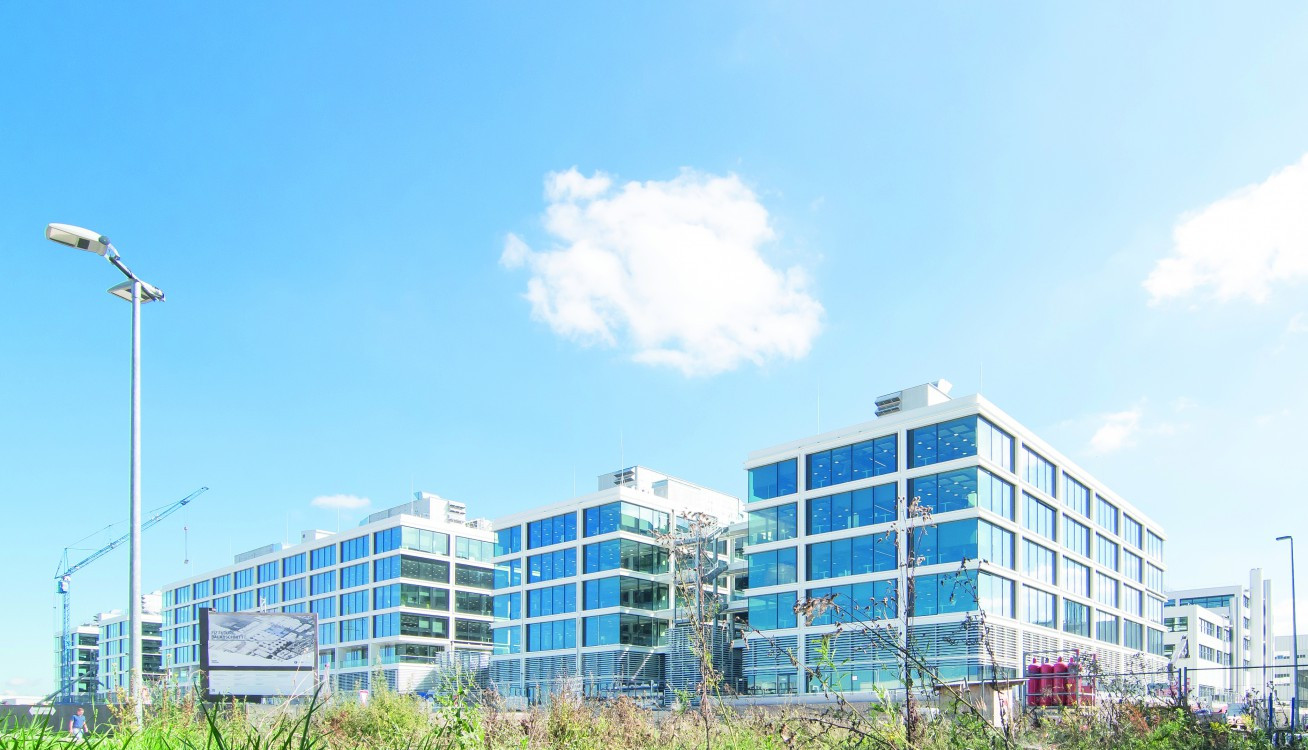

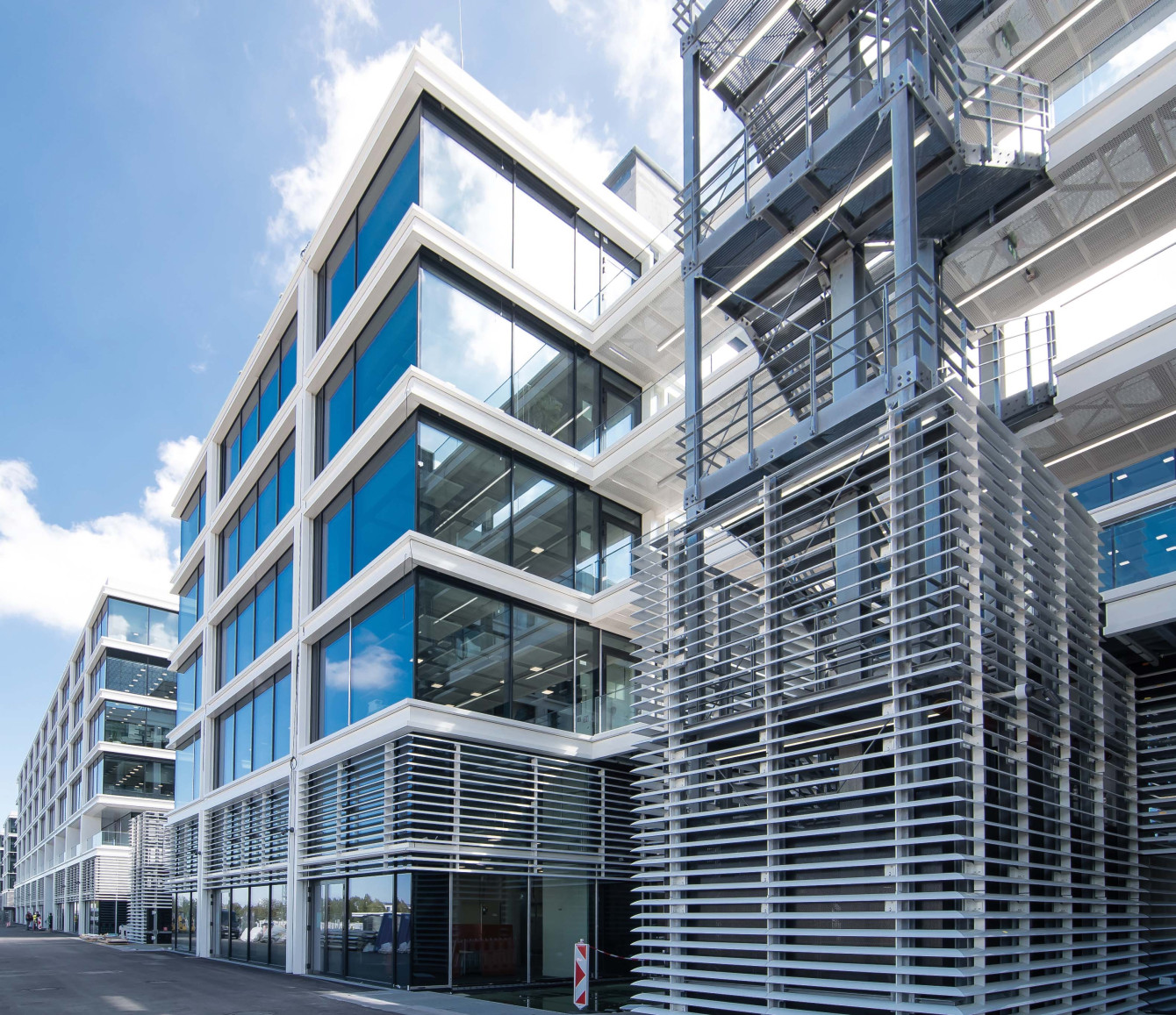

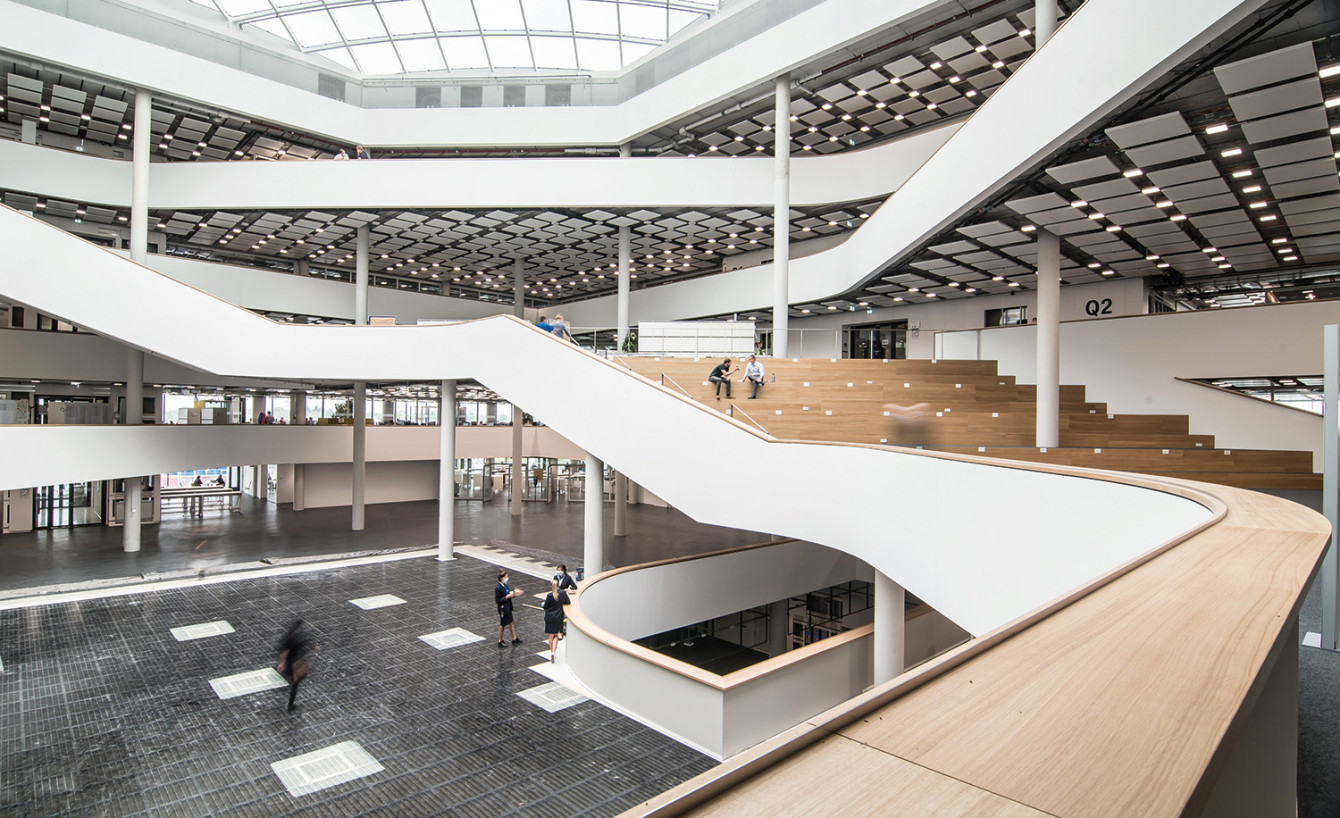

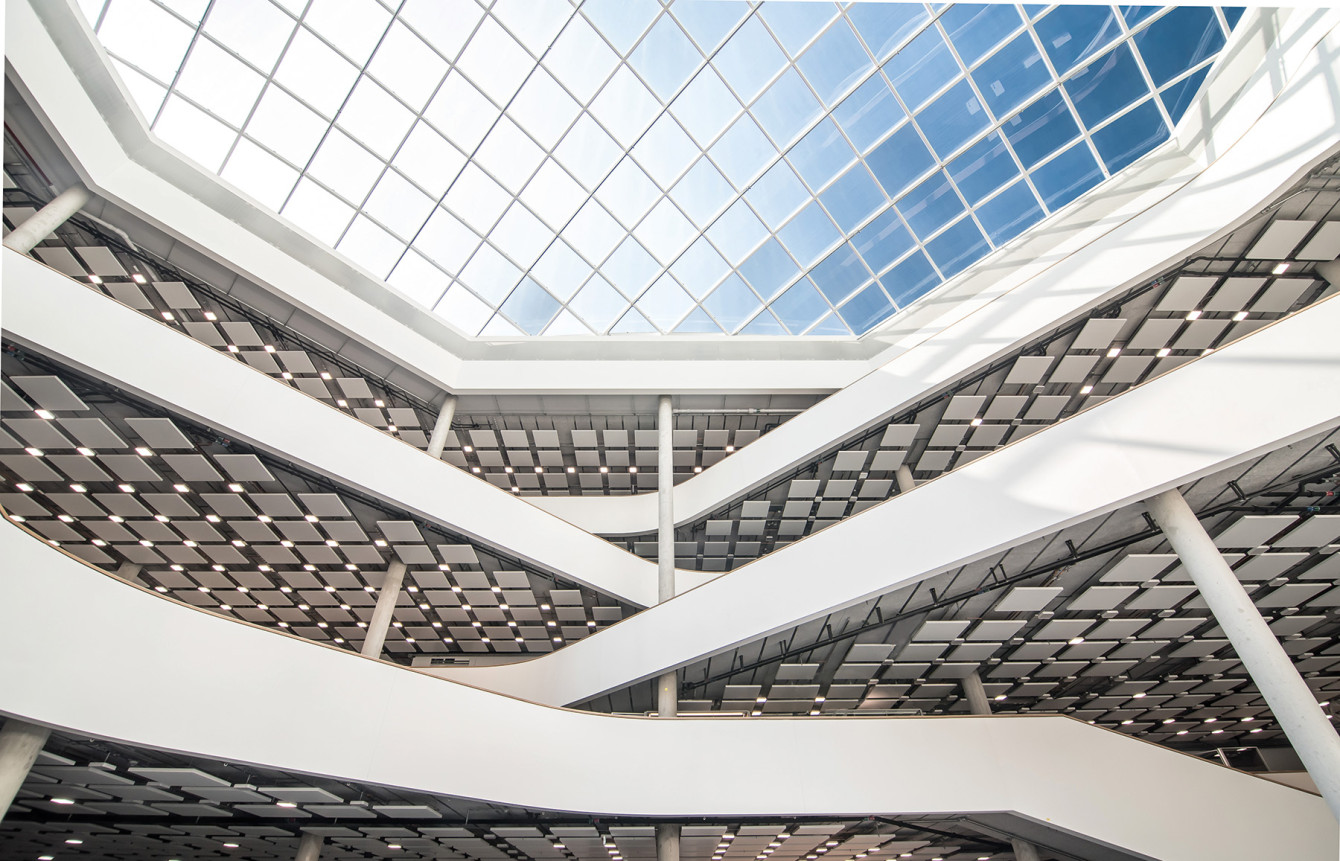

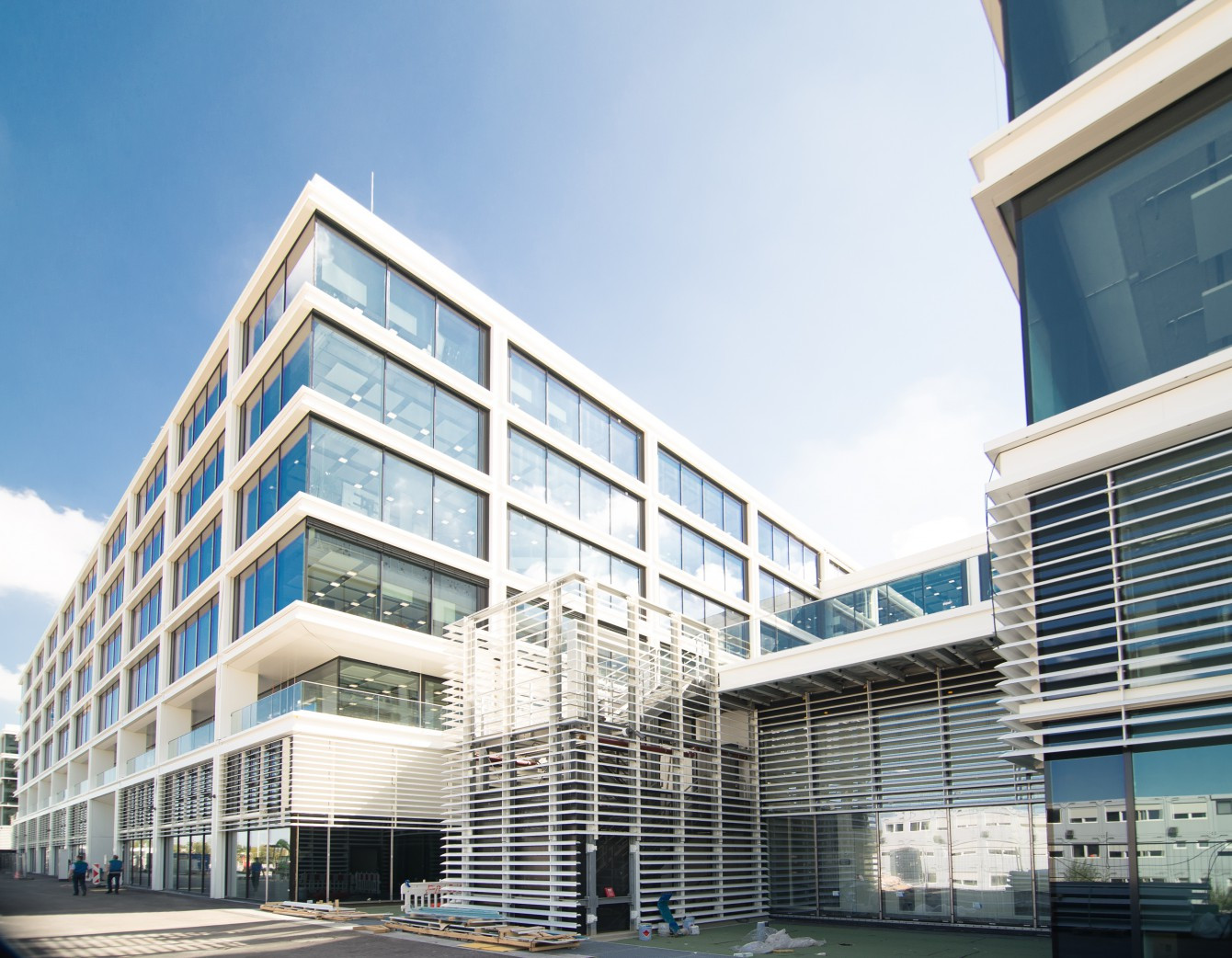

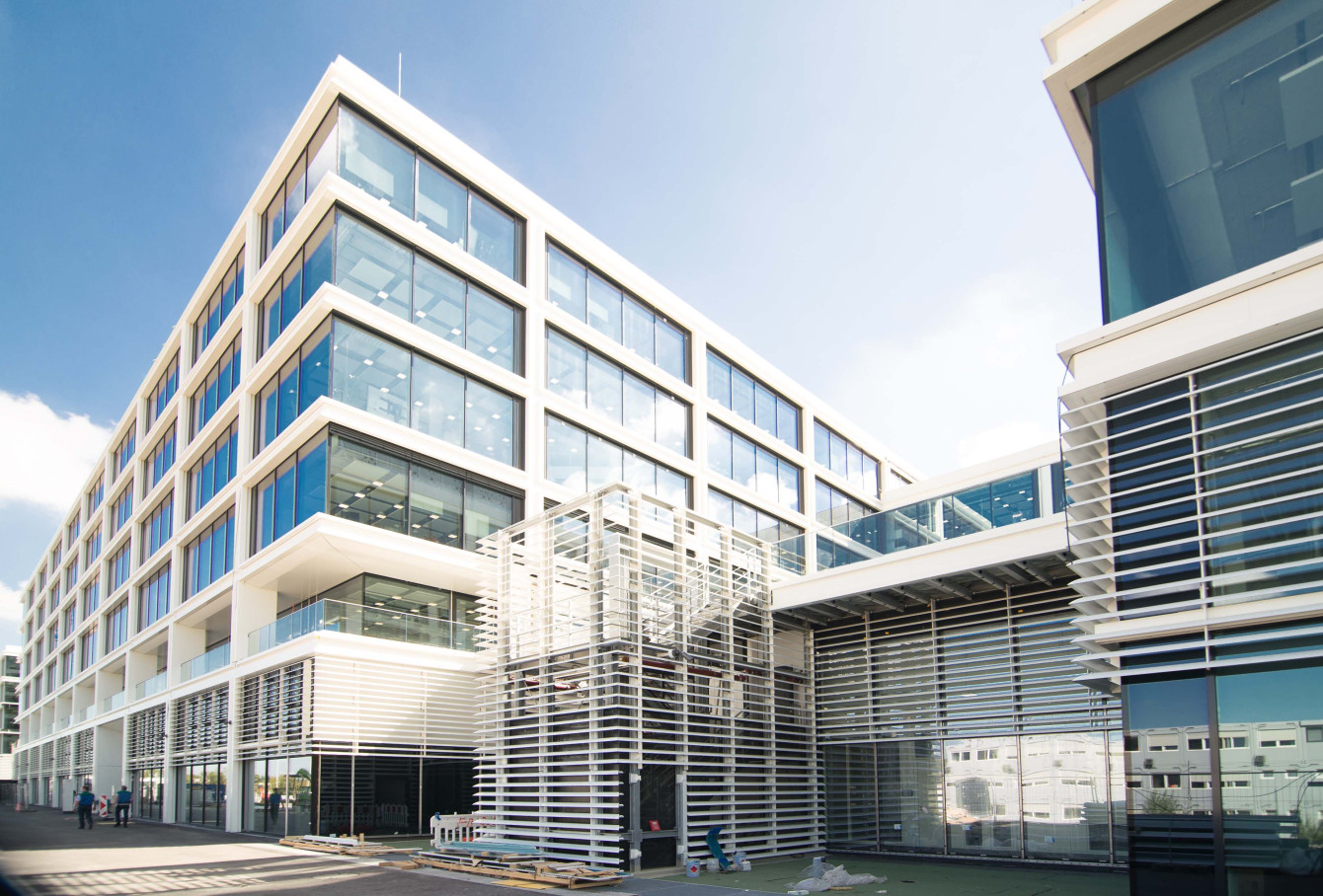

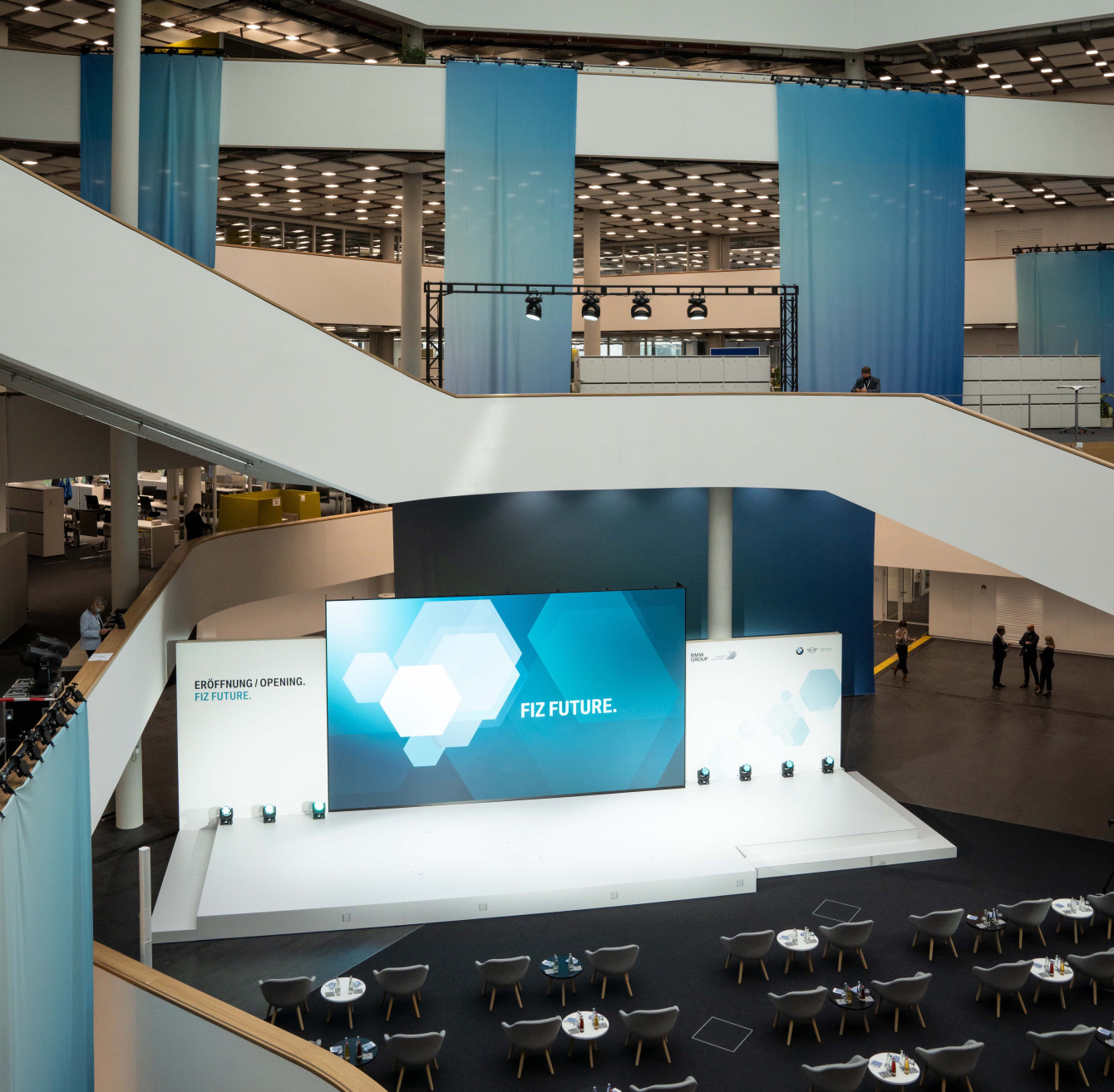

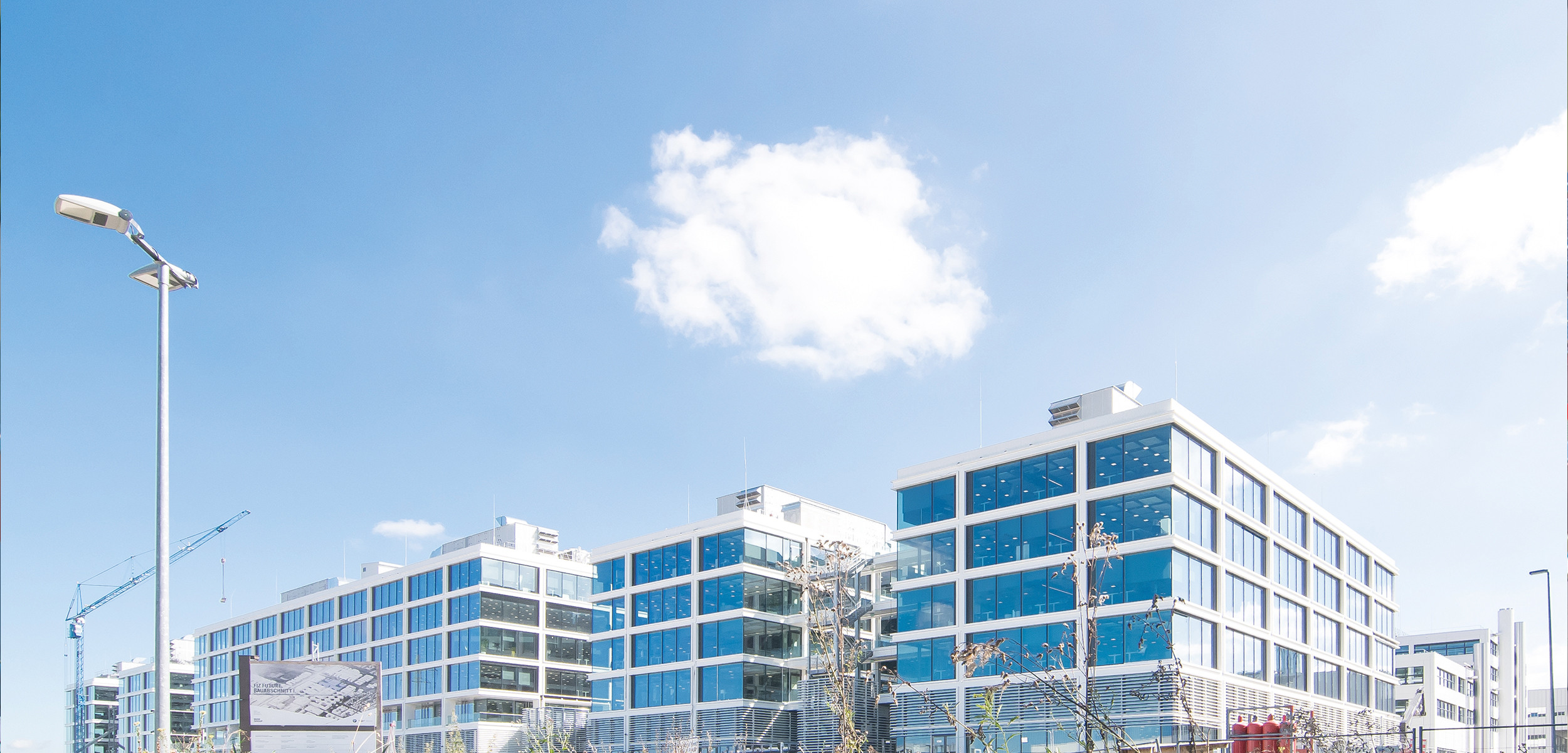

FIZ Future is a long-term urban development program for continued development. Its first construction phase was officially opened at the end of September 2020. This includes the FIZ Project House North as the new heart of the global research and development network, but also two office complexes and a building for test benches and measuring equipment. Around 4,800 vehicle developers have space here over a floor area of around 21 soccer fields.
COMPLETE CONTRACT
Bachner Elektro was able to win a comprehensive contract for this first construction phase of FIZ Future: for the areas of energy and building, IT/communication, ICE and security technology. This is divided into sub-project 1 (SP1), which consists of the workshop area, test benches and laboratories, and sub-project 2 (SP2), which mirrors the office complex. "If you include the external service providers, between 350 and 400 people have been involved in this project for Bachner from mid-2018 until today – including ten site managers," says managing director and overall project manager Günther Plank. In addition to the Munich Bachner branch, numerous employees from other sites were also involved in the project. "The project is so extensive that we can only cover excerpts of it here," those involved agree.
SMART BUILDING TECHNOLOGY
An increased installation density in SP 2 results from the principle of smart building technology and digital user control. Many processes and building functionalities can be digitized through this. Ultimately, this leads to a significant increase in energy efficiency.
LIGHT CONTROL IN VIRTUAL SPACES
Lighting control is a very easy way to understand the smart building principle. The open space concept over six levels is divided into more than 1,400 virtual rooms, similar to a grid. The lighting in such rooms can be controlled via a smartphone app. Using so-called beacons, any presence in an area is detected and users have the ability to adjust the lighting to their needs or to use scenario presets. This avoids lighting unnecessarily large areas. The technical implementation of this solution is a combination of DALI lighting control and WAGO controllers. The latter controls the lights in the virtual rooms. One challenge here is adapting the controller software to allow ultimate control over the smartphone app.
SOPHISTICATED MSR TECHNOLOGY
Special emphasis was placed on on-demand heating and cooling in more than 200 office and meeting rooms in SP2. The functionality of the high-efficiency heating and cooling ceilings are intertwined. This means that either heating or cooling can be used. Heat or coolness is provided only when requested by a zone. This chain is intelligently designed so that, for example, when "coolness" is requested in an office, the respective supply area switches on. This in turn places a requirement on the main supply. From there, there is a transfer to the chiller and from there to the cooling towers. This chain is only active if at least one participant requests the medium. In this way, no energy is spent on the provision. Another special feature is that smoke extraction in the SP1 test benches is controlled directly via the ventilation system, which significantly increases the complexity of programming and switching work.
LATEST STANDARDS IN CONTROL TECHNOLOGY
However, the control technology for ventilation, heating, cooling and chilled water systems, as well as for individual controls, is also up to the task. OPC UA, one of the most important communication protocols for Industry 4.0, is used for this purpose. OPC stands for Open Platform Communications. This standardizes access to systems in an industrial environment and facilitates the exchange of data in a uniform and manufacturer-independent manner. The UA in OPC UA stands for Unified Architecture and refers to the current specification of the standard, which is used to encrypt data communication down to the field level.
SECURITY AND DATA TECHNOLOGY
Smart building technology is inconceivable without IT and communications technology. Over 56 distributor locations in both building complexes are connected to each other and to the network centers via redundant fiber optic connections. In addition to the area-wide WLAN coverage and the networking of all control systems, such as for ICE technology, blinds, and lighting systems, this plays a particularly important role for components of the security technology. In this way, the installation of access control, time recording or hazard detection systems goes hand in hand with their networking.
GREAT TEAM EFFORT
Special emphasis was placed on on-demand heating and cooling in more than 200 office and meeting rooms in SP2. The functionality of the high-efficiency heating and cooling ceilings are intertwined. This means that either heating or cooling can be used. Heat or coolness is provided only when requested by a zone. This chain is intelligently designed so that, for example, when "coolness" is requested in an office, the respective supply area switches on. This in turn places a requirement on the main supply. From there, there is a transfer to the chiller and from there to the cooling towers. This chain is only active if at least one participant requests the medium. In this way, no energy is spent on the provision. Another special feature is that smoke extraction in the SP1 test benches is controlled directly via the ventilation system, which significantly increases the complexity of programming and switching work.
